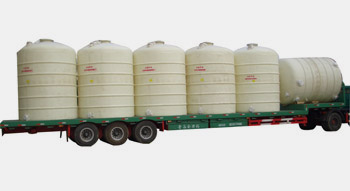

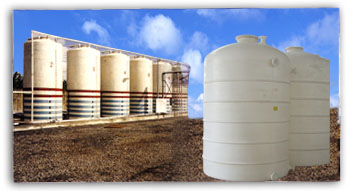

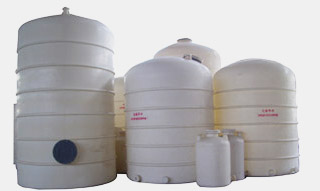

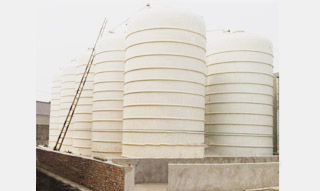

聚乙烯立式槽罐系列
体 积(m3) |
直径(mm) |
长度(mm) |
顶高(mm) |
法兰内径 |
备注 |
|||||
a |
b |
c |
d |
e |
人孔f |
|||||
0.5 |
860 |
1000 |
300 |
50 |
50 |
50 |
|
25 |
250 |
|
1 |
1050 |
1400 |
250 |
50 |
50 |
50 |
|
25 |
250 |
|
1 |
1250 |
1100 |
350 |
50 |
50 |
50 |
|
25 |
450 |
|
1.5 |
1250 |
1400 |
350 |
50 |
50 |
50 |
|
25 |
450 |
|
2 |
1250 |
1800 |
300 |
50 |
50 |
50 |
|
25 |
450 |
|
3 |
1500 |
2000 |
450 |
50 |
50 |
50 |
|
25 |
450 |
|
5 |
1500 |
2800 |
450 |
50 |
50 |
50 |
|
25 |
450 |
|
5 |
1800 |
2200 |
600 |
50 |
50 |
50 |
|
25 |
450 |
|
8 |
2000 |
2800 |
600 |
80 |
80 |
50 |
|
50 |
450 |
|
10 |
2300 |
2800 |
700 |
80 |
80 |
50 |
|
50 |
450 |
|
10 |
2000 |
3400 |
600 |
80 |
80 |
50 |
|
50 |
450 |
|
12 |
2300 |
3400 |
700 |
80 |
80 |
50 |
|
50 |
450 |
|
15 |
2450 |
3400 |
600 |
65 |
80 |
50 |
|
50 |
450 |
|
15 |
2700 |
2850 |
800 |
80 |
80 |
50 |
50 |
50 |
450 |
|
20 |
2450 |
4600 |
600 |
80 |
80 |
50 |
|
50 |
450 |
|
20 |
2700 |
4000 |
800 |
80 |
80 |
50 |
50 |
50 |
450 |
|
25 |
2900 |
4200 |
700 |
80 |
80 |
80 |
80 |
50 |
450 |
|
30 |
2900 |
5000 |
700 |
80 |
80 |
80 |
80 |
50 |
450 |
|
35 |
3200 |
4800 |
600 |
80 |
80 |
80 |
80 |
50 |
450 |
|
40 |
3200 |
5500 |
600 |
80 |
80 |
80 |
80 |
50 |
450 |
|
45 |
3200 |
5900 |
600 |
80 |
80 |
80 |
80 |
50 |
450 |
|
45 |
3400 |
5300 |
850 |
80 |
80 |
80 |
80 |
50 |
450 |
|
50 |
3400 |
5900 |
850 |
80 |
80 |
80 |
80 |
50 |
450 |
|
